Cities as Hydro-Geologic Terrain: Design Research to Transform Urban Surfaces

ABSTRACT - Imperviousness is a significant design problem for the future of cities: we must reduce it, redesign it, transform it. This paper argues to insert hydro-terrain thinking to the paved surfaces of cities, instantiating the concept of “rain terrain” that links hydrologic performance across scales, from the raindrop to the region. The City of Chicago is the case study where high concentrations of pavement drain stormwater from the city - resulting in flooding, overflowing and polluting - from the Great Lakes to the Gulf of Mexico. I first share research on the glaciated history of the region, to reveal sandy soil types located in the urban area. I then correlate imperviousness, permeable soils and flooding prevalence to identify a pattern of site opportunity areas in the city. I also propose design practices - through disruptions, interventions and reconfigurations of urban surface - to tap paved-over soils as the basis for a landscape-based urban stormwater approach. In doing so, this paper aims to present a vision for urban transformation, based on specific technical design opportunities within landscape-as-infrastructure.
Keywords
depaving design research hydrogeology landscape infrastructure urban surface



“Before the city, there was the land.”
(William Cronin) 1

Imperviousness in cities is a spatial, material and hydrographic design research problem. It has been long-studied in scientific disciplines as a source of multiple hydrologic and social impacts.2 Yet to date, there are few systemic design proposals for addressing pavement on the scale of these impacts. In the design fields, the ubiquitous presence of urban pavements presents an intriguing design research area, and many argue, that such patterns representing planetary surface manipulation, must be situated back in the land, land processes and landscape geographies.3 The negative impacts of high concentrations of pavement, as characterize cities, are local, regional and territorial in their consequence.

This paper evaluates this urban infrastructure design issue and proposes a reflective design process to re-situate urban surface design within the  hydro-geologic origins of cities. Through a case study of Chicago, where the urban surface impacts the Great Lakes to the Gulf of Mexico, I emphasize the need for territorial design to address such conditions.

I begin the paper by sharing the theories and methods within design to reframe urban hydrology issues in order to create new knowledge and inventive approaches to complex problems. I then share research methods of:

1.Gathering historic and current data of regional geologic history,urban surface conditions and the flooding patterns of the area;

2. Correlating the relationships between urban surface, soils and urban flooding;

3. Evaluating the scope and scale of design potentialities.

I then propose a surface intervention approach, employing subtractive and additive design strategies. The purpose of this design research is to rethink cities as hydro-geologic terrain, and to locate potential design propositions for transforming the urban surface of cities as a hydro-geologic interface. 4

SCRATCHING THE SURFACE

Humans have manipulated the geologic surface of the planet through urbanization, industrialization and agriculture through excavation, compaction, erosion, sedimentation and deforestation. A recent article published by the Geological Society of America signifies the importance of studying the surficial geological record described as “the relatively thin veneer of young (<~1 Ma) [1 Ma=formed 1 million of years ago] and mostly unconsolidated sediments that cover portions of Earth’s terrestrial surface” because, quite simply, it is disappearing.5 Described as “the dominant geomorphic agent on Earth,” humans are altering Earth’s surface including urban areas and our coastal regions, which is creating a great loss of our geologic record.6 This particular scientific research crisis concerning a disappearing record forms part of the concern addressed in this paper, although my inquiry comes from the direction of design:

a.Can we find and reclaim surface geology that still exists?

b. If so, can we re-engage that material in the reimagination and regeneration of our cities?

c.More specifically, can we address urban hydrologic design byincorporating knowledge of geologic systems and soils?

d.Lastly, can design disrupt outdated conventions of asphalt surfaces in cities, and invent new surfaces that transform urban hydro-ecologies?

These queries regarding the hydro-geologic basis of urban infrastructure design drives this research. In recent decades, landscape and design theorists have demonstrated the fallacy of binary thinking about man/nature, city/nature and infrastructure/nature, through its concepts, theories and constructions, and propose practices of hybridity, recombination and heterogeneity, to generate resilient integration of natural processes within urban forms and systems.7

Attention to the urban surface “as site” exemplifies principles of emergence and performance situated in urban landscape as a precise medium of change and adaptation. By reintroducing ecological performance into the surface,  we revive relationships among material, technical and social strata. The case study of Chicago exemplifies the importance of urban surface performance. The city relies on a combined sewer system consisting of some of the largest underground engineering in the world, sized to receive extraordinary stormwater runoff from a surface network of impervious paved surfaces of streets and parking lots. Inundation of stormwater into the sanitary system creates urban flooding, street and basement backups and combined-sewer overflows to the Chicago River and Lake Michigan. This research proposes to resolve this issue through design of the urban surface where rainwater makes first contact. I discovered that a coastal, hydrogeological system of sand dunes and sand spits in Chicago, hidden and paved over, provide unique design opportunities for infiltration through strategically transforming the city surface. Here, I share my design research inquiries, and employ correlation and projective design,8 to propose design responses to this situation, as an “agentic role” model for design.9

GETTING BEYOND THE SURFACE: RESEARCH POSITIONS TO INVENT NEW APPROACHES

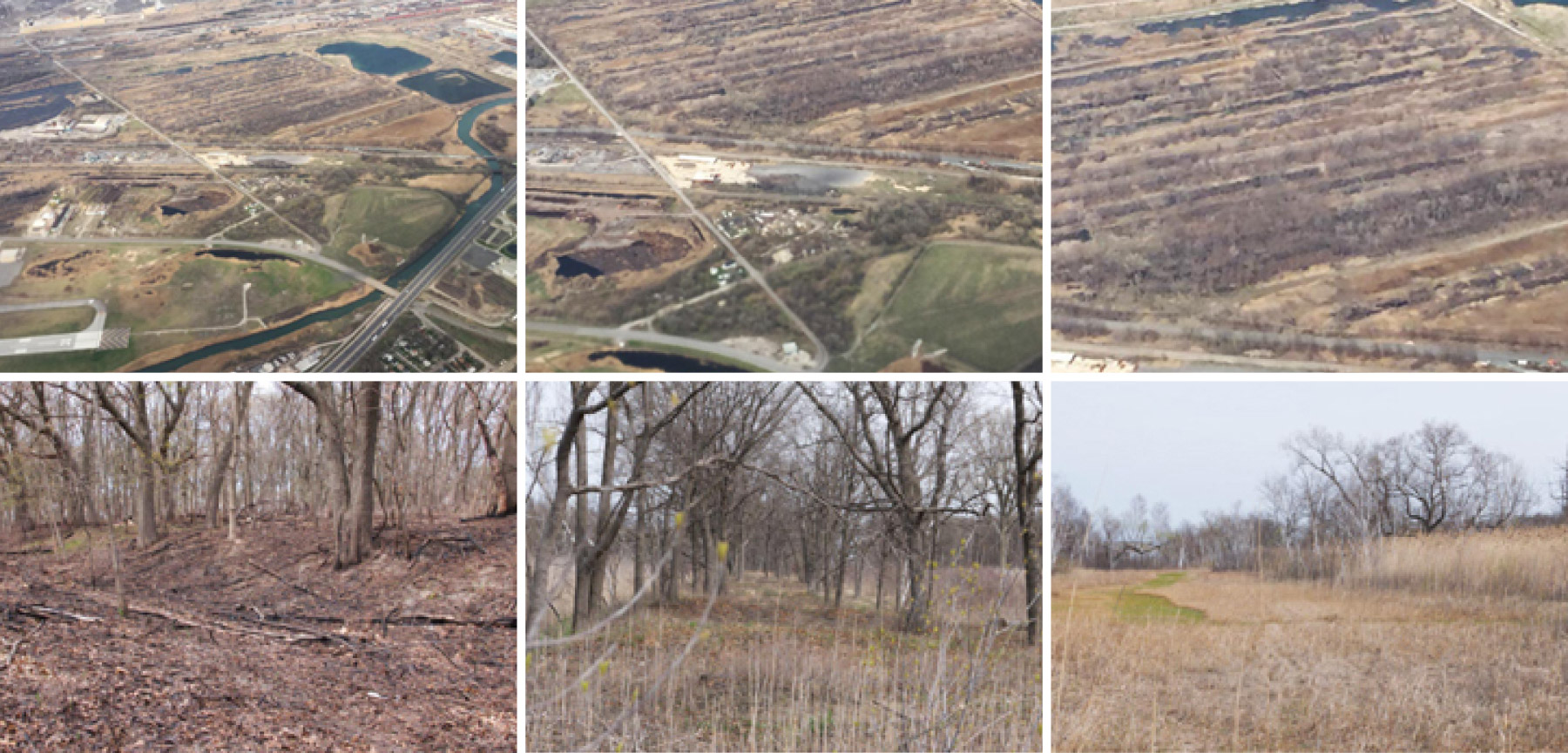

Figure 1. Birds-eye photographs of southern coast of Lake Michigan, glacial remnants in between the industrial sites of the Chicago-Calumet, Illinois and Gary, Indiana corridor (upper images); site photographs of dune-swale landscape of the coastal geologic area (lower images).

PAVEMENT AS GEOLOGIC SURFACE

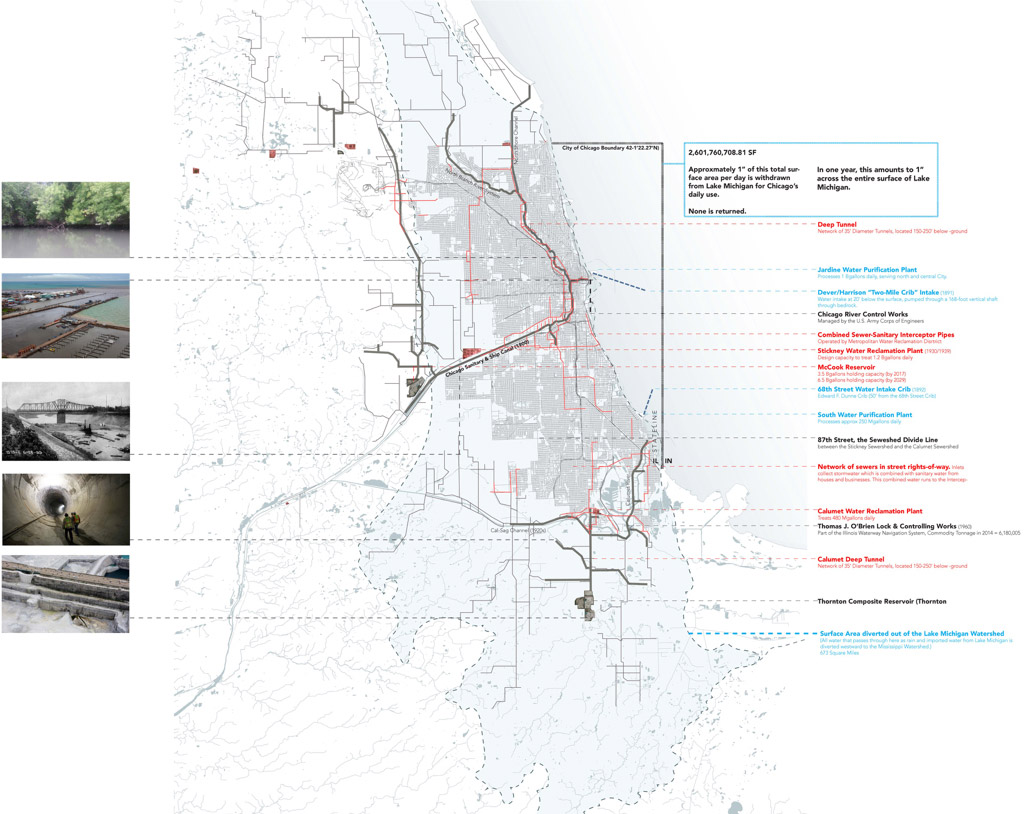

Figure 2. Water infrastructure of Chicago. A network of interceptor pipes, tunnels and reservoirs, from which 99% of the city flows into a combined sewer system. Chicago is permitted to withdraw approximately 2 billion gal. [7,5 billion L] of water per day from Lake Michigan, and exports this as sanitary water combined with stormwater westward outside of its watershed to the Mississippi River Watershed.

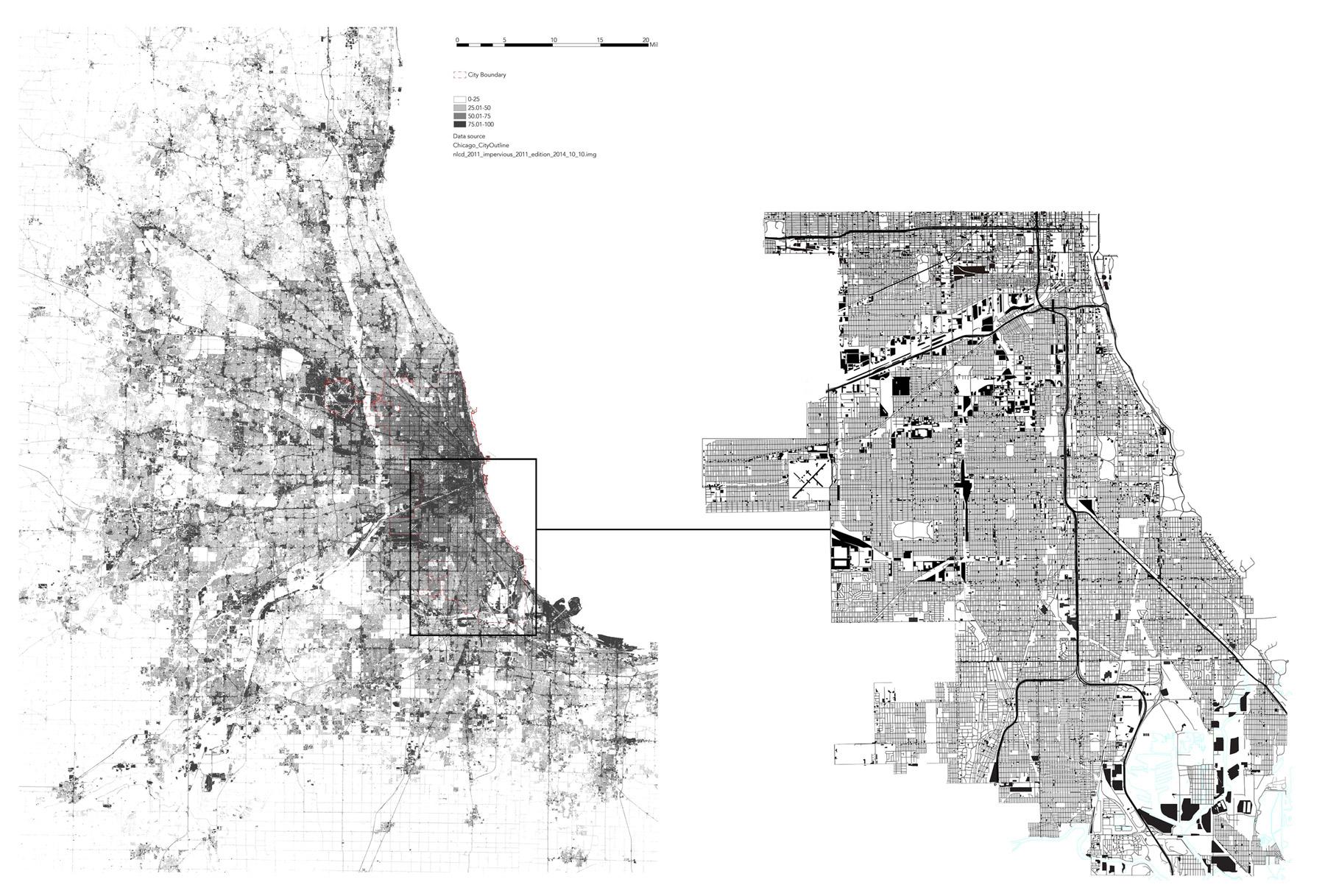

Figure. 3. Imperviousness in Chicago and metropolitan region. Source: National Land Cover Database, NLCD 2011 (left); asphalt inventory (South Side, Chicago) of surface parking lots, industrial lots, streets, using GIS City of Chicago data portal “streets edge layer” supplemented by aerial photographic analysis (right).

SUB-SURFACE CONDITIONS: MOVING TOWARD INCLUSION AND OPENNESS

Research about the paved surface of cities must also consider what is below it. As Deryck Holdsworth writes, “For anyone concerned with understanding long-term transformations, traditional landscape analysis inevitably offers only a limited scope of inquiry.” 32 The use of archival material is essential in incorporating hidden or invisible knowledge of a regional territory. The 1902 United States Geological Survey (USGS) published maps of the Chicago region, which revealed previously-forgotten patterns of glacial deposits of sand and gravels shaped by wind and water into beach ridges, dunes and spits. Important to note, the 1909 Plan of Chicago did not account for glaciated soil and underlying ecological patterns.33 Although scientific evidence of geologic material was well established at that time, and figured into the designs for the city’s landscapes, it was not accounted for or embedded within the structure of urban form. For example, landscape architect Frederick Law Olmsted worked with geologic form and material in the shaping of Jackson Park for the World’s Exposition of 1892.34 However, within the subsequent broader plan of Chicago, the agricultural-scale urban grid and infrastructural networks determined the spatial organization of the city and the city surface was treated evenly through the production of streets and drainage systems. Yet, today the historic geologic form and material-the dune sands-are still there. Lidar maps and visual surveys of the neighborhoods reveal the extant forms of these remnant dunes sitting right under the paved city, with neighborhoods superimposed across the dunes (Fig. 4). The presence of original soils is a promising new design direction for the city.35

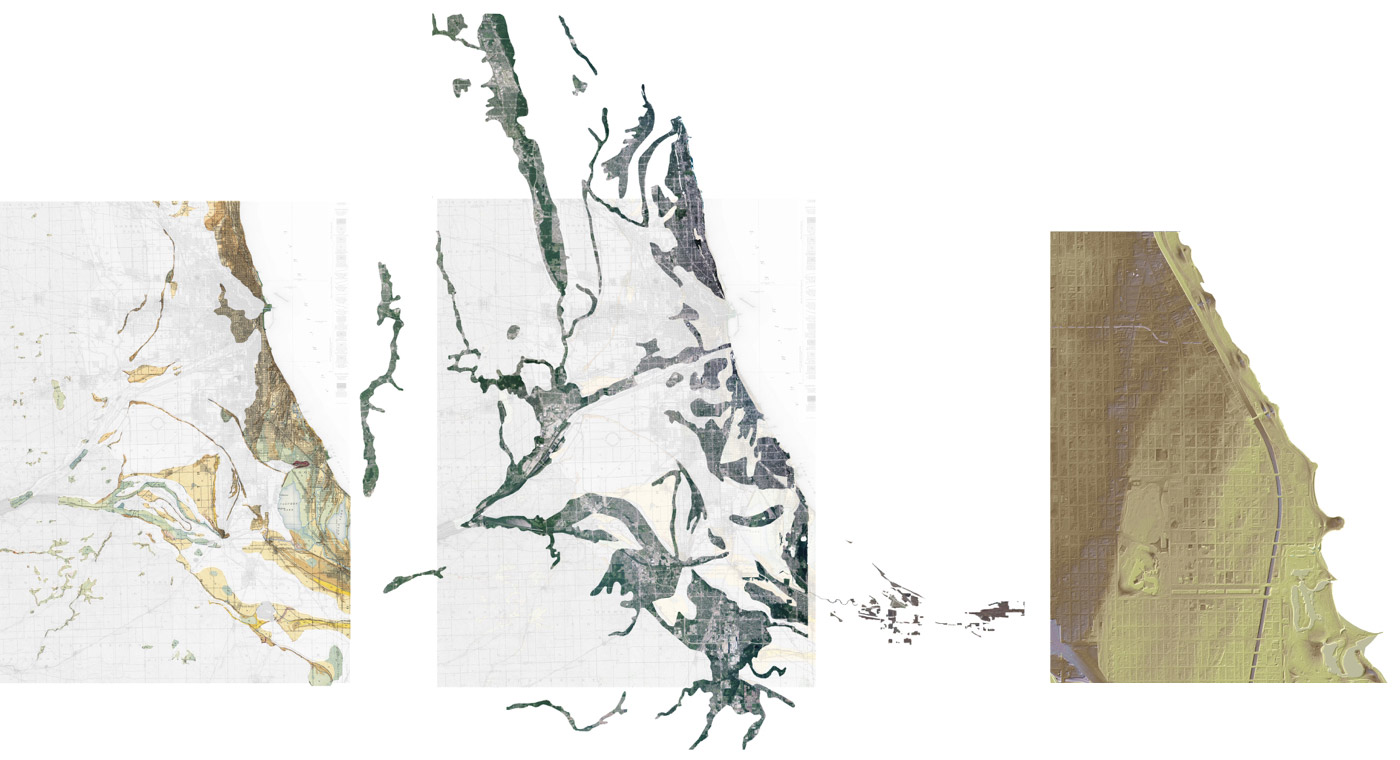

Figure 4. Sands, dune sands, and gravel areas, shown in tawny, yellow, and orange, along 5 mi. [8 km] margin of shoreline. Adapted from USGS Surficial Geology, Illinois-Indiana, Calumet Quadrangle, 1902 (left); composite of unconsolidated soil areas (center); Lidar (2008) of Chicago South Side neighborhoods Washington Park, Hyde Park and Woodlawn, dune ridge topography visible (right).

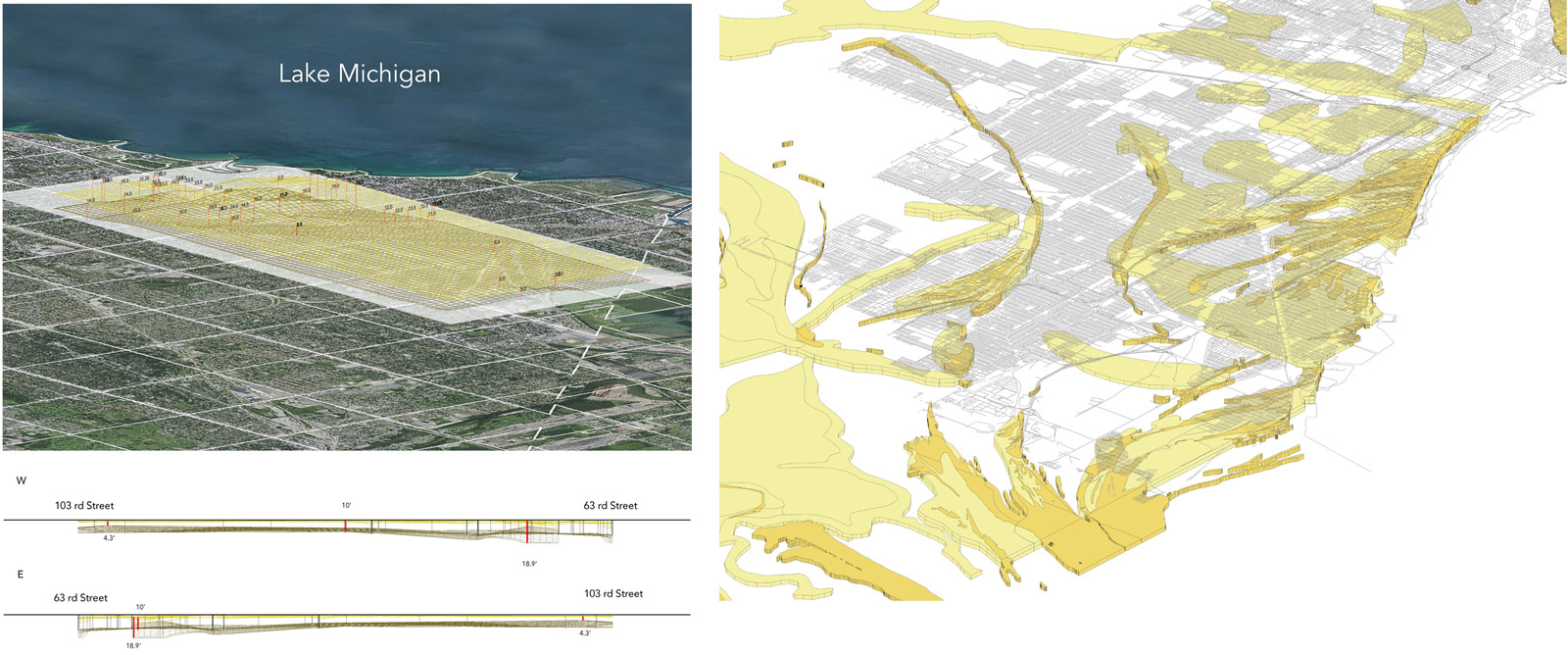

Figure 5. Permeable soil area, data indexed from University of Illinois Geologic Records Unit soil logs, modeled in Rhino (upper-left); cross-sections of sands, same data set (lower-left); permeable soil areas (Stack-Unit Maps & Bretz Maps) Southside of Chicago, modeled in Rhino. Chicago streets network for scale (right).

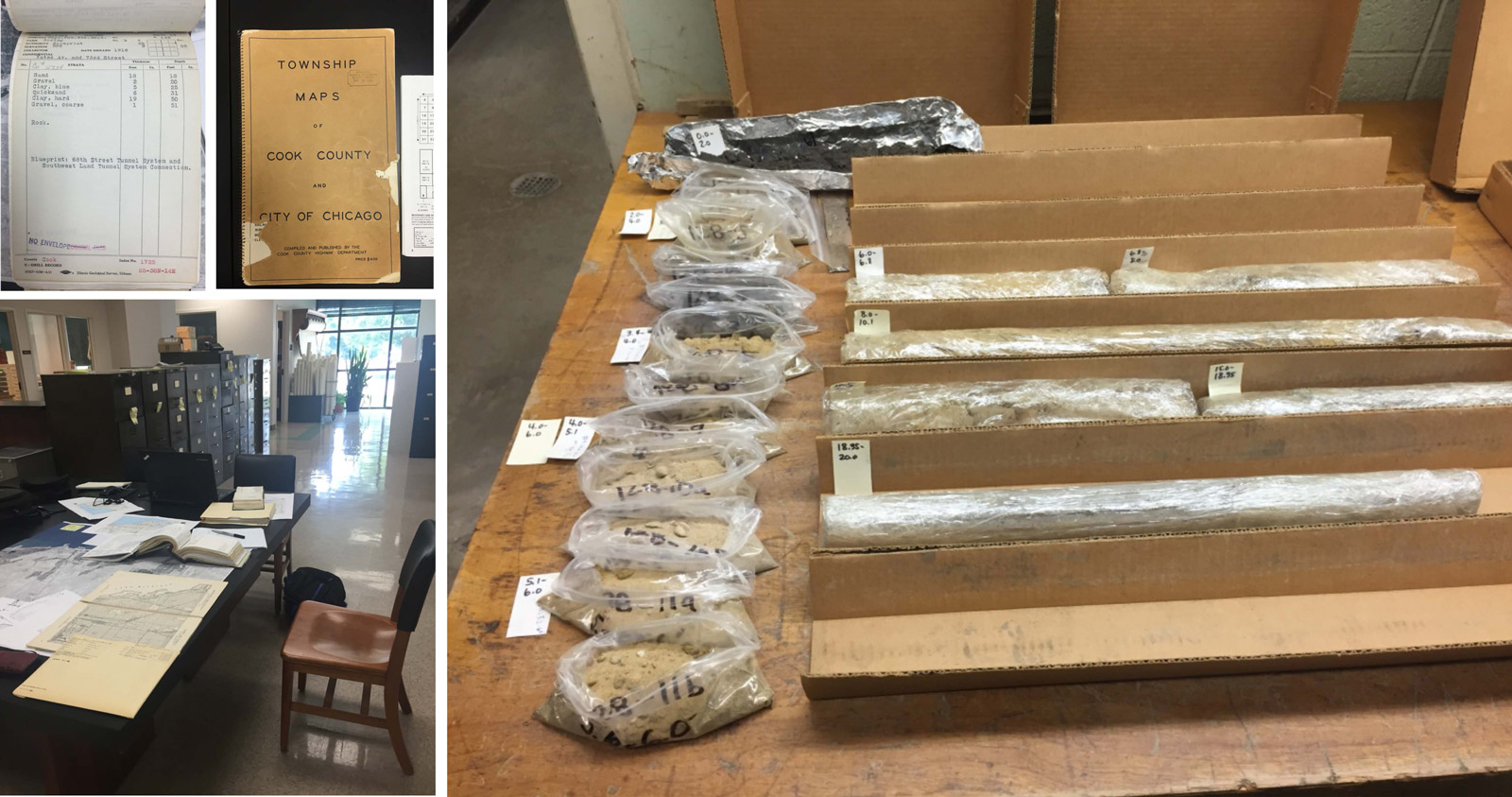

Figure 6. Drill log sample, Geologic Records Unit, University of Illinois (left); soil core, Illinois State Geological Survey: Hamilton Park: 38N 14E Section 28, Core #C 15302 (0’ – 20’), API 120313433500, Natural Resources Soils Library, University of Illinois (right).

PUTTING THINGS TOGETHER: CORRELATION

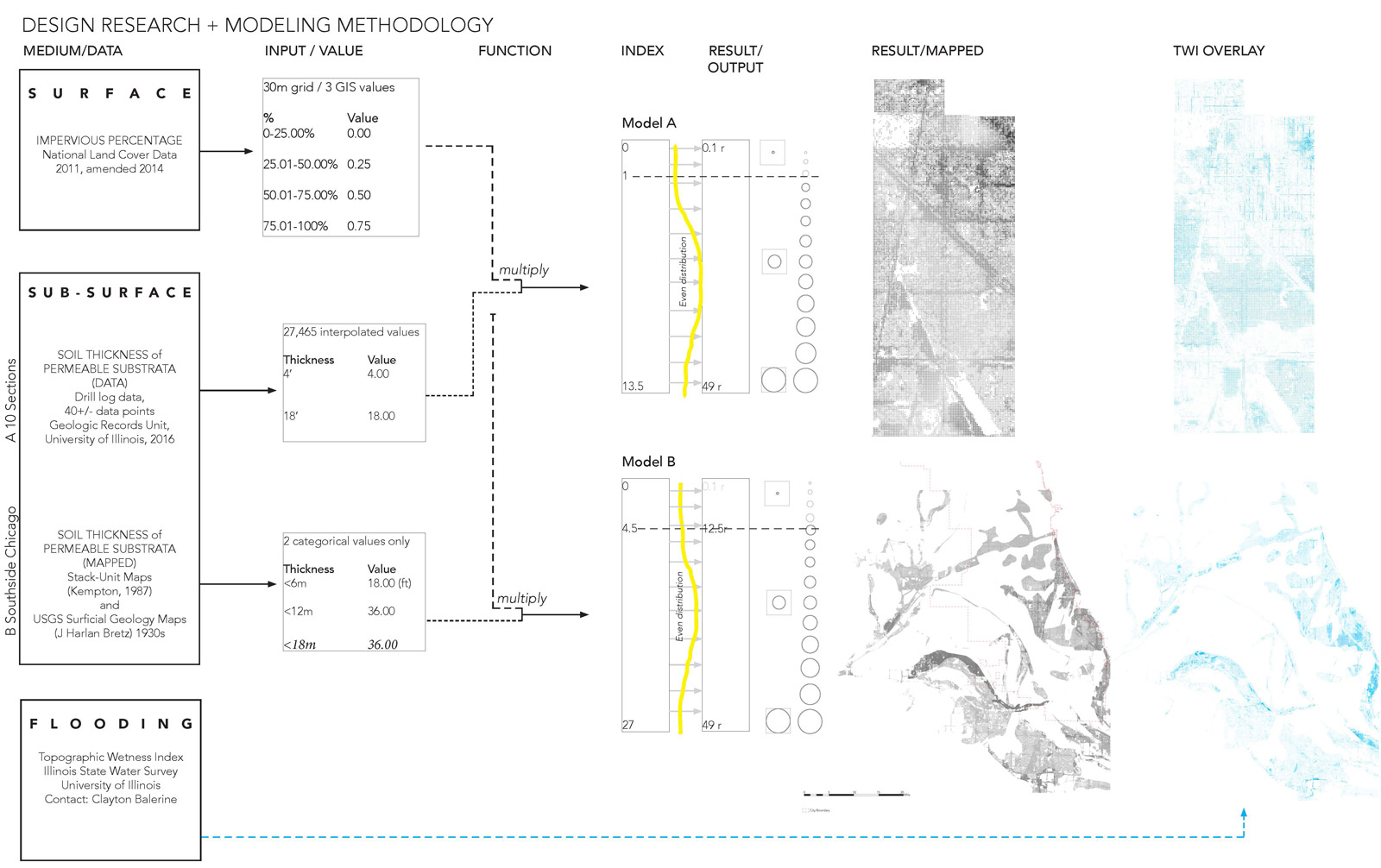

Figure 7. Modeling methodology diagram correlating imperviousness, permeable soils and localized flooding.

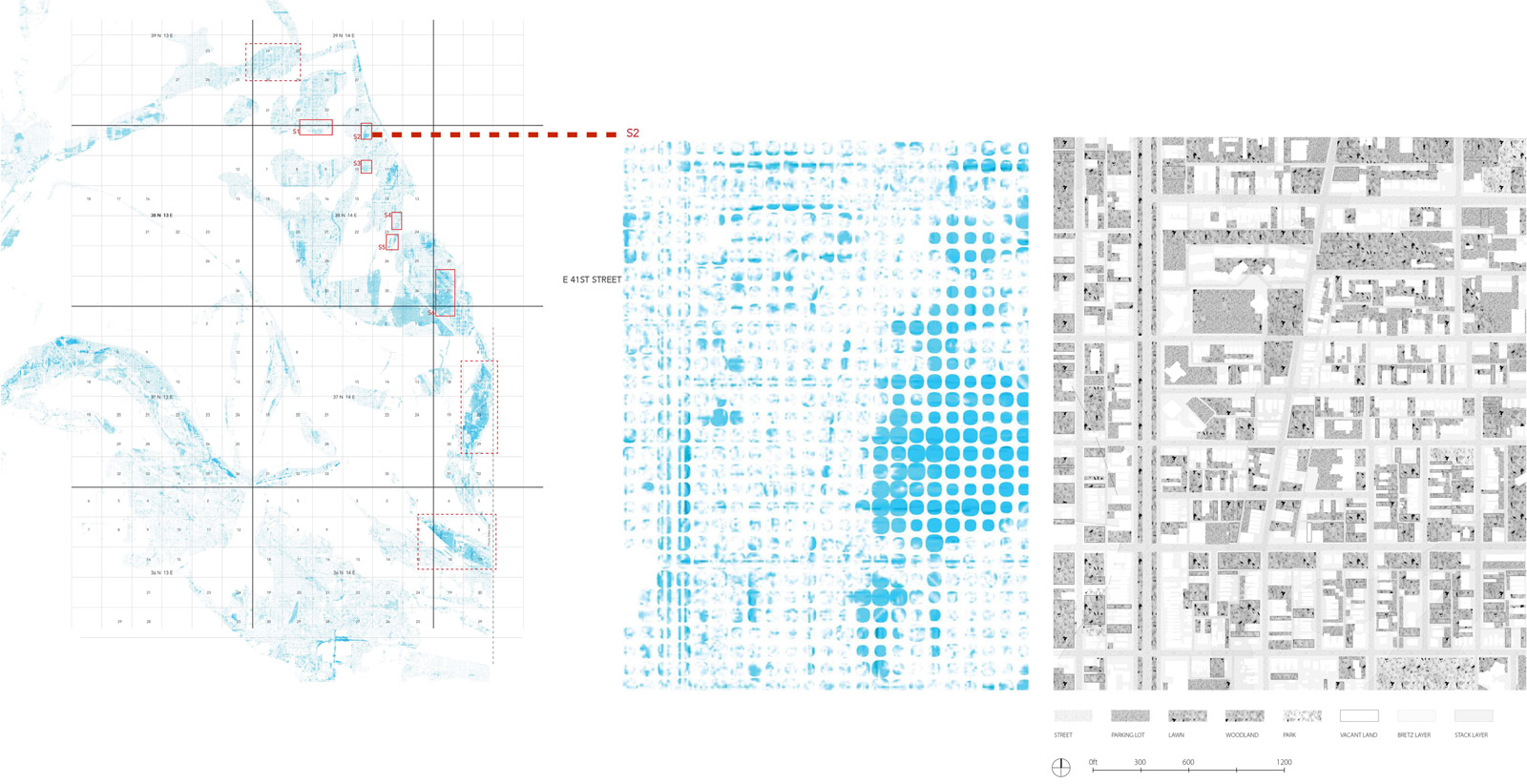

Figure 8. Sample target site areas (at the neighborhood scale) where surface imperviousness, permeable soils and downslope flooding potential coincide (left); inventory of surface types within this site area (right).

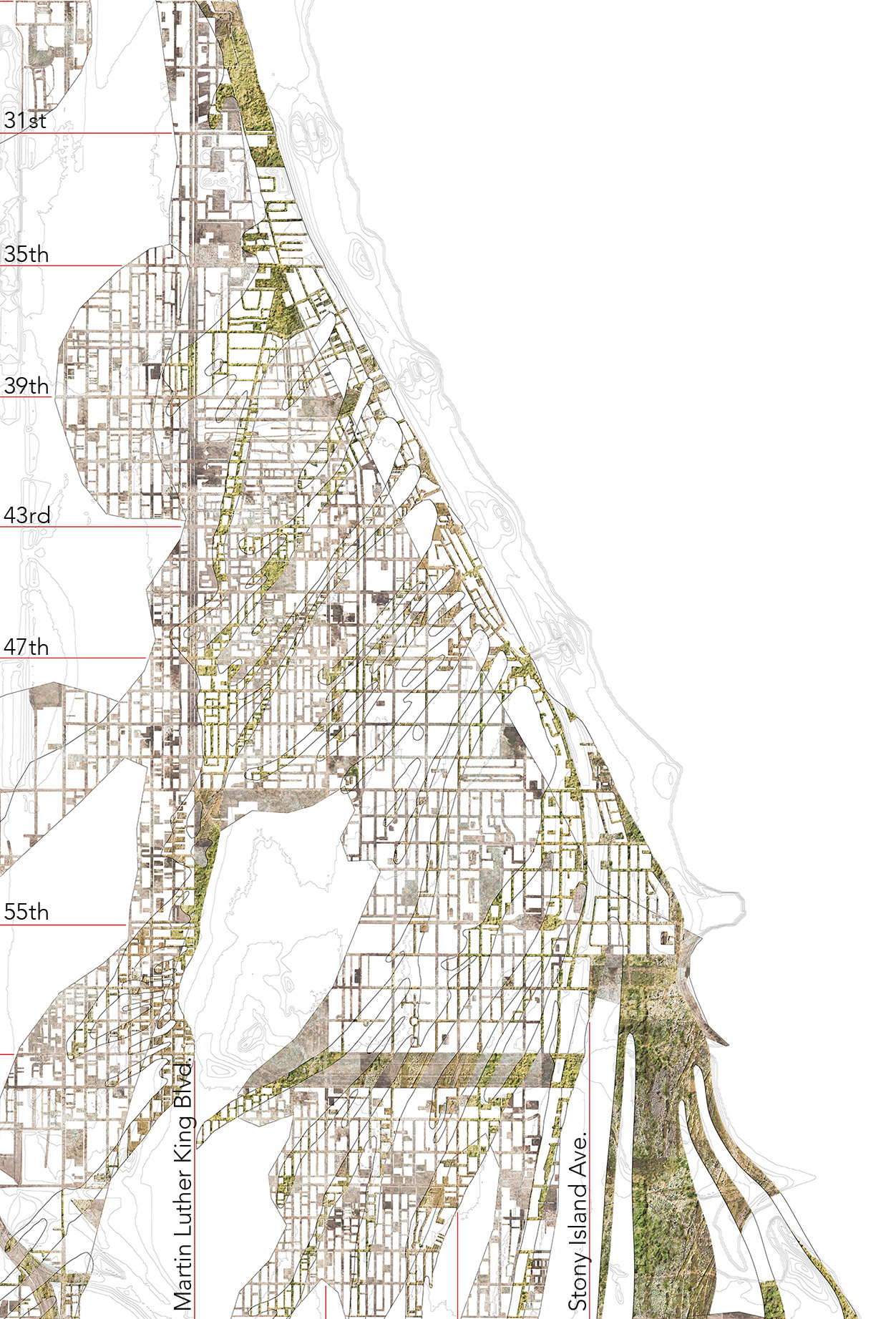

Figure 9. Illustrative of dune soil types under impervious and compacted ground in the Bronzeville, Washington Park, Hyde Park and Woodlawn areas. Extent of land surface (impervious and compacted ground) by major category: 1,080 acres [437 ha] of street surface, 800 acres [323 ha] of parking surface and 285 acres [115 ha] of vacant land surface.

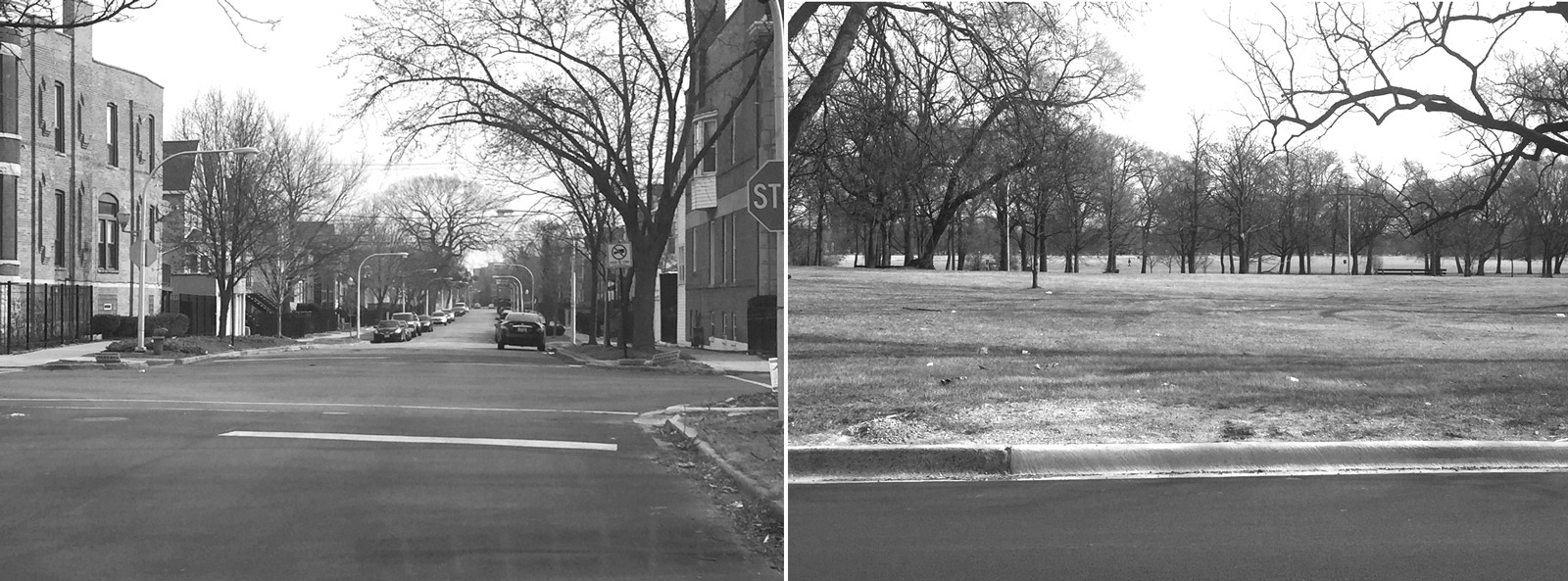

Figure 10. Site photos, from on top of dune ridge. From Vincennes Avenue, looking east along 41st street (left); the same dune ridge farther to the south, in the northwest area of Washington Park (right).

TAKING THINGS APART: DESIGN DISRUPTION

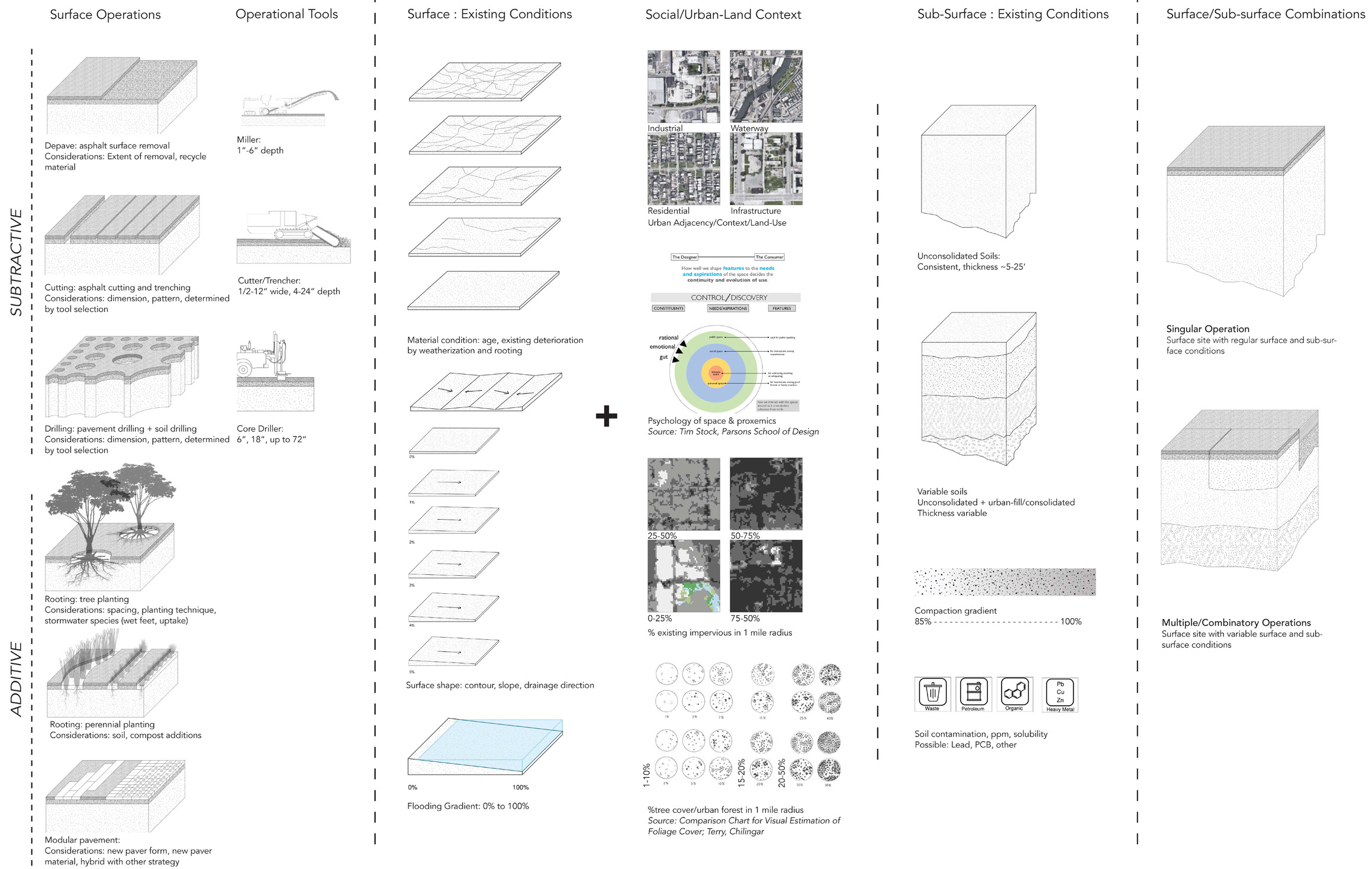

Figure 11. Proposed subtractive and additive surface operations relative to physical and environmental surface conditions, environmental and social contexts and sub-surface conditions.

CONSIDERATIONS

In order to help persuade stakeholders to adopt this stormwater approach as a long-term resolution to flooding, test plots should demonstrate the hydrologic performance enabled by these new water-activated surfaces. Studies can compare these water infiltration sites with water holding sites to help cities with varying conditions decide which strategies will be most effective.44 Future research should also consider the economic implications associated with design conversion of the surface sites by comparing the cost of surface infiltration strategies with that of current stormwater management strategies (i.e., the cost of flooding, or the cost of doing nothing). Landscape performance research can evaluate the economic, environmental, social and aesthetic benefits from capturing and infiltrating water where it falls, as opposed to the cost of collecting, storing and treating the same water through the gray system. Low-tech ways of direct infiltration and of diverting water from entering the inlets can cost almost nothing.45 The strategies proposed above are anticipated to involve an initial depaving cost, followed by amendments, planting and seasonal maintenance, but they are likely far less expensive, and potentially more transformative of urban neighborhoods than retrofitting existing underground infrastructure. Certainly these strategies are accessible and cost effective measures for cities when compared to the extraordinary degradation caused by stormwater mismanagement and the cost of collecting, conveying, pumping and treating stormwater through the combined system.

Based on the preliminary research presented above, I am now leading an interdisciplinary team to continue this investigation in the southern Calumet region of the study area. Sponsored by NOAA (National Oceanic and Atmospheric Administration), the National Sea Grant program funds research to develop resilient coastal communities. The study will update the geologic soils database with on-site and modeled hydrologic characteristics based on fragility curve analysis. This quantifiable design data will inform precise recommendations on retrofitting urban surface design scenarios for the city and region. This study should provide a replicable urban design retrofit process for neighborhoods and wards in the project area.

Further, while this two year project does provide strategic design options from which municipal leaders can more confidently allocate investment, it does not intend to force policy revisions. Landscape leaders such as Kongjian Yu argue that scale must be linked from policy to site implementation,46 but I argue that there may be ongoing barriers to institutional acceptance. Generalized stormwater planning policies and goals may be more effective through “adaptive governance.” 47 The flexibility of informal planning strategies benefitted by decentralized decision-making, an educated citizenry and bottom-up approaches may increase implementation. The team will work directly with community and municipal leaders in this bottom-up manner to integrate this design data to retrofit urban surface conditions according to soil types. Thus, we will learn whether a lack of larger urban institutional controls and constraints may actually benefit working with local municipalities, neighborhoods and land-owners to adopt local, site-driven approaches. Based on the outcome, strategies to institutionalize may still be worth pursuing to systematize adoption at a broad scale.

OLD KNOWLEDGE AND NEW DIRECTIONS

William Cronin opens Nature’s Metropolis with the pithy line, “Before the city, there was the land.” 48 He reminds us that natural systems were rapidly exploited through urbanization and industrialization, their ecological function externalized through a control of nature. If resiliency can be defined as working with natural flows and forces, then tapping into the “pre-urban” hydro-geologic conditions of cities is a pathway forward to unlocking a future through an understanding of the past. This paper explores how a knowledge of urban infrastructure systems and a desire to root stormwater design in the deeper landscape conditions of the city might lead to novel and systemic interventions.

Put bluntly, it is not enough to modestly intervene. As designers, we need to question the conditions that create these issues and to propose systemic change. Environmental site-based design fields should lead design research on this issue, transforming spatial matrices for surface water design on a large, systemic scale.49 With a decidedly reflexive approach, grounded in concepts offered through “landscape as infrastructure” and “water urbanism,” 50 this design research involves identifying and correlating disconnected urban systems and aggressively reconnecting their behaviors through landscape processes.

Though each city is unique, this hydrogeological stormwater approach is relevant and applicable within other cities of the Great Lakes region, which sits as a harbinger for urban water design relationships. Within this intensely urbanized and post-industrial megaregion, impervious cover is a primary and urgent issue across the territory, providing opportunities for re-thinking pavement systems and transforming vacant lots and abandoned pavements into socially, environmentally and economically vital land.51 As climate disturbance has shown, we need innovative ways to transform and adapt the local conditions of these highly populated and vulnerable areas, and to return functionality to the land as an adaptive buffer to forces in our climate. Across the range of spatial densities and urban surfaces, understanding and engaging the geology underneath that surface will increase and enlighten the productivity of our efforts.
